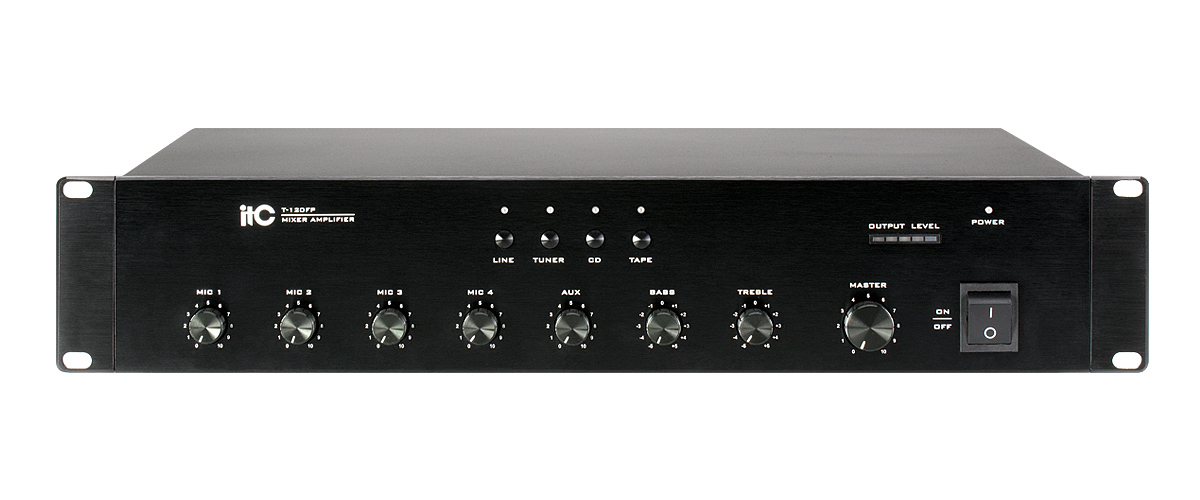

T-120FP/T-60FP/T-240FP-Mixer Amplifier.

The FP series amplifier is a 2U (less than 240W) mixer amplifier featuring 70V, 100V and 4-16ohm speaker outputs & 4 universal balanced XLR mic inputs with phantom power. The amplifier rated power ranges is from 60W, 120W, 240W to 350W, 500W (3U).There are 4 audio source selectors on the front panel. 4 Aux inputs by dual RCA type are located on the rear panel. Mic 1-4 with Vox priority selectors. The amplifier is also built-in pre-announcement chime with volume control and remote chime trigger.The REC output for tape recorder and PRE output, AMP input for adding extra signal processor like mixer, graphic equalizer.

Volume control over Mic1-4, aux, master & overall treble/bass controls are provided.Complete protection includes short circuit and thermal protection, current limiter and overloading.

* 2U tabletop and rack mounted design.

* Rated power output from 60W, 120W, 240W, 350W and 500W.

* 4 balanced XLR microphone inputs with phantom power and gain control.

* 4 dual RCA line inputs.

* 70V, 100V and 4-16Ω speaker terminals.

* Mic 1-4 with selectable priority over other inputs.

* Built-in chime, 2/4 tone selector and remote trigger.

* XLR balanced line output for extra power amplifier.

* REC output for tape recorder.

* PRE Output and AMP input for extra signal processor.

* Master, Mic1-4, Aux volume control, treble and bass control.

* Indications includes power and output level meter.

* AC 110V or 230V and DC 24V operation.

Model T-60FP T-120FP T-240FP
Rated Power Output 60W 120W 240W
Speaker Outputs 50V, 70V, 100V & 4~16Ω
Input Sensitivity &

Impedance

MIC 1, 2, 3, 4: ±2.5mV/2KΩ, Balanced XLR input
AMP: 1000mV/10KΩ, Unbalanced RCA input
TAPE, CD, TUNER, LINE INPUT(AUX): 350mV/10KΩ,
 Unbalanced RCA input
Output Sensitivity &

Impedance

REC OUT: 200mV/470Ω, Unbalanced RCA output
PRE OUT: 1000mV/470Ω, Unbalanced RCA output
Overload MIC 1, 2, 3, 4: >15dB
Electromotive Force AUX: >18dB
Tone Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
Frequency Response 50Hz~16KHz (+1dB, -3dB)
S/N Ratio MIC 1, 2, 3, 4: 66dB; AUX: 76dB
THD Less than 0.1% at 1KHz, 1/3 rated power
Muting Function MIC 1~4 overrides other input signals
with 30 dB attenuation
Set the priority for MIC1~4 by the “MIC PRIORITY”
switch on the rare panel ( Priority function available
when it is”ON”, the priority will be on lower level
same as AUX input when it is “OFF”)
Gain Control ±2.5mV~±75mV at 30dB
Crosstalk ≤50dB
Phantom Power +48V with LED indicator
Chime 2 tone and 4 tone options
Cooling Fan automatically start up when temp
reaches 55℃ ( Equipment below 120W
will convect and cool button-up)
Protection High temp, overload & short-circuit
Power Supply ~110V-230V  50/60Hz
Power Consumption 100W 200W 400W
Dimensions 484 x 303 x 88mm 483 x 358 x 88mm
Weight 8.08Kg 9.36Kg 13.52Kg
Finish Panel: aluminum plate, black
Case: SPCC Panel
