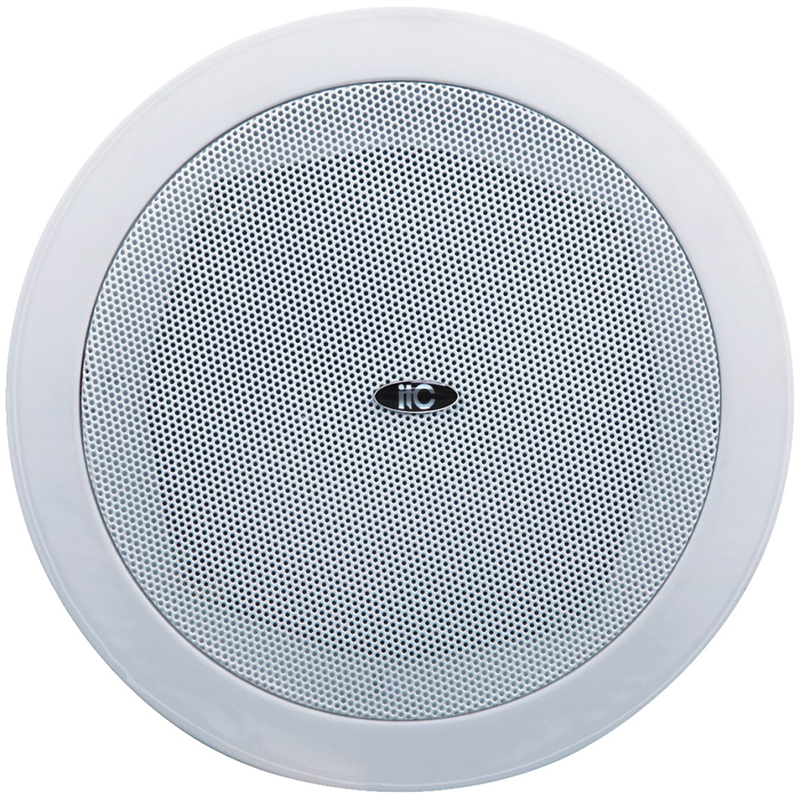

T-105F Ceiling Speaker.

  • The T-105F is a ceiling speaker built-in 70v/100v transformer. The
    70v/100v transformer technique reduces line losses on longer distance
    and allows easy parallel connection of multiple loudspeakers.
  • The built-in 5” speaker driver is designed of wide frequency response
    100-16KHz, the multiple power taps 3W & 5W are helpful for different
    applications varies from room size and ambient noise surroundings.
  • The Aluminum grille, ABS baffle and ABS back
    cover are painted in attractive white color. Its spring clip clamp makes the easy and secure installation.
  • It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music
    and paging is needed.


Model T-105F
Power Taps @100V 3W, 6W
Power Taps @70V 1.5W, 3W
Impedance Com/ 3.3KΩ/ 1.7KΩ
SPL(1W/1M) 89 dB
Max. SPL (Rated W/1M) 96 dB
Frequency Response (-10dB) 100-16KHz
Mounting Flush-mount dog ears
Finish Baffle: Steel ,white Grille: Aluminum ,white
Speaker Driver 5″ x 1
Cutout Size 165mm
Dimensions 180 x 102mm
Weight0. 0.7Kg
