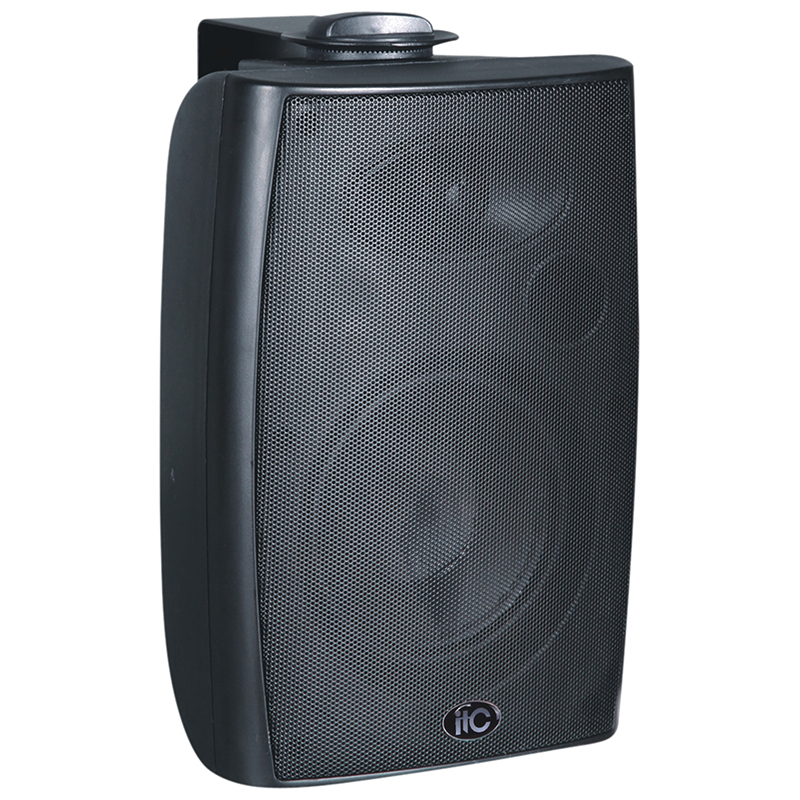

T-775H-Wall Mount Speaker


Indoor high-grade wall-mounted speakers, multi-power fixed resistance and fixed pressure selection, modern sense of arc design, 2 frequency division design, high cost performance, convenient installation. Suitable for hotels, conference halls, etc.


Model T-774H/T-774HW T-775H/T-775HW T-776H/T-776HW T-778H/T-778HW
Power taps @100V 2.5W, 5W, 10W, 20W 3.75W, 7.5W, 15W, 30W 5W, 10W, 20W, 40W 7.5W, 15W, 30W, 60W
Power taps @70V 1.25W, 2.5W, 5W, 10W, 20W 1.9W, 3.75W, 7.5W, 15W, 30W 2.5W, 5W, 10W, 20W, 40W 3.75W, 7.5W, 15W, 30W, 60W
Impedance 4KΩ/2KΩ/1KΩ/500Ω/250Ω 2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω 2KΩ/1KΩ/500Ω/250Ω/125Ω 1.3KΩ/670Ω/330Ω/165Ω/81Ω
Input 70V/100V/8Ω 70V/100V/8Ω 70V/100V/8Ω 70V/100V/8Ω
SPL(1W/1M) 86dB 88dB 89dB 89dB
Frequency response (-10dB) 120-18KHz 100-18KHz 100-20KHz 100-20KHz
Speaker driver 4″ x 1    1.5″ x 1 5″ x 1    1.5″x 1 6″ x 1    1.5″ x 1 8″ x 1     2″ x 1
Dimensions 260 x 170 x 170mm 285 x 180 x 186mm 340 x 220 x 225mm 450 x 295 x 290mm
Weight 2.3kg 2.7kg 4.1kg 6.5kg
