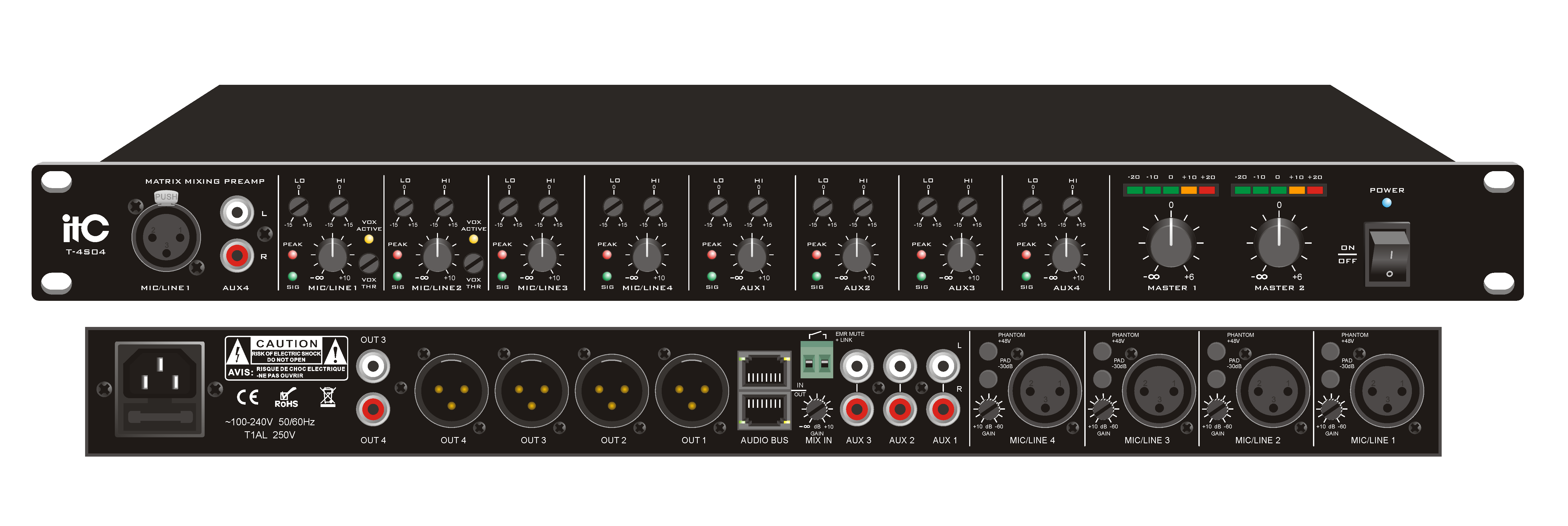

T-4S04 Stereo Mixer Pre- Amplifier (8 Inputs & 4 Outputs)

Specifications:

Model T-4S04
Input Sensitivity/Impedance
1-4MIC/ Line ±2.5mV/5KΩ balanced, ±250mV/5KΩ balanced
1-4AUX RCA In 400mV/5KΩ unbalanced
Output Level/Impedance
Master 1, 2,3,4 1V/600Ω balance (MAX:±7.75V)
AUX 1V/10KΩ unbalanced (MAX:7.75V)
Tone Bass: ±15dB at 100Hz, Treble: ±15dB at 10KHz
Low Cut 200Hz / 12dB per octave slope
Frequency Response
Less Than
S/N Ratio -1dB (20Hz~20KHz)
MIC
Line > 60dB
THD > 75dB
MIC
Line < 0.05%
Cross-talk > 0.03%
MIC > 60dB
Line > 75dB
Power Consumption Power 20W
Power Supply ~110V-230V 50/60Hz
Dimensions 484 x 209 x 44mm

Features:



* Standard machine cabinet type 1 U height design, black aluminuim oxide draw bench panel.

* 4 MIC/LINE XLR balanced inputs, providing 48V phantom power switch.

* 4 AUX accessory unbalanced inputs, there are 2 RCA in each channel,  and one of them is on the panel.

* Each channel is equipped with volume control and tone control.

* Signal/peak value LED light monitors the input level of every channel.

* MIC/LINE1,MIC/LINE2 internally installed low cut.

* Each input channel can be assigned to output channel freely through jumper.

* The panel provides one channel of MIC/LINE input in addition,

parallel connected with MIC/LINE1.

* MIC1/MIC2 priority control, and adjustable threshold value.

* 4 XLR balanced outputs, in parallel connection with 2 channels of RCA

unbalanced outputs.

* 4 RJ45 bus balanced inputs, whose volume is adjustable, and can be mixed correspondingly into 4 channel XLR outputs.

* 4s of RJ45 bus balanced outputs mixed signal.

* Output level indicate.

* External mute controls for all channels.

* Switching power supply provides electricity.
