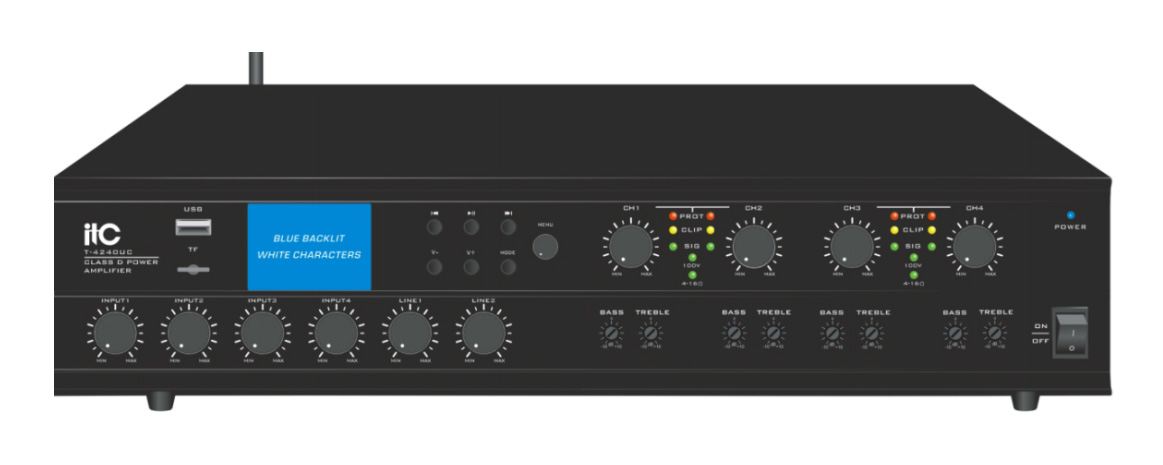

T-2120UCDigital Mixer Amplifier.

itc 2/4 Channel Matrix Digital Mixer Amplifier of new UC series, with higher efficiency, is ideal for commercial sound system. It meets the demands of emerging markets to provide high-quality equipment at affordable prices. The UC series mixing amplifiers enjoy two outputs of 4R/100V and multiple functions, which are applicable worldwide. The series combines many functions for convenient and flexible usage, including Bluetooth and USB media players; support 4Ω/8Ω/ 100V output; each output channel is equipped with separate bass and treble control. It is suitable for clubs, stadiums, shopping centers and other broadcasting systems on demand of multi-channel high-power power amplifier.

2/4 Channel Matrix Digital Mixer Amplifier

Support Bluetooth and MP3 player(USB/TF)

Support 4Ω/8Ω/ 100V output;

Support remote volume control, remote paging;

Multiple output powers: 2*120W; 2*240W; 4*120W; 4*240W



Model T-2120UC T-2240UC
Output terminal 4-16Ω, 100V
Output power 2*120W 2*240W
Input sensitivity & impedance MIC1-6 input: 5mV-350MV±40MV/600Ω
AUX1-4 input: 350mV±40MV/10KΩ unbalanced RCA connection terminal
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output sensitivity & source impedance OUT1-4 OUT: 1000mV/470Ω unbalanced RCA connection terminal
Tone Bass: ±10dB at 100Hz
Treble: ±10dB at 10KHz
Frequency response 80~16KHz(+1dB,-3dB)
SNR MIC1-6: 66dB; AUX1-4: 80dB
THD < 0.5% (at 1KHz, 1/3 rated power)
Phantom power 48V(±2V)
