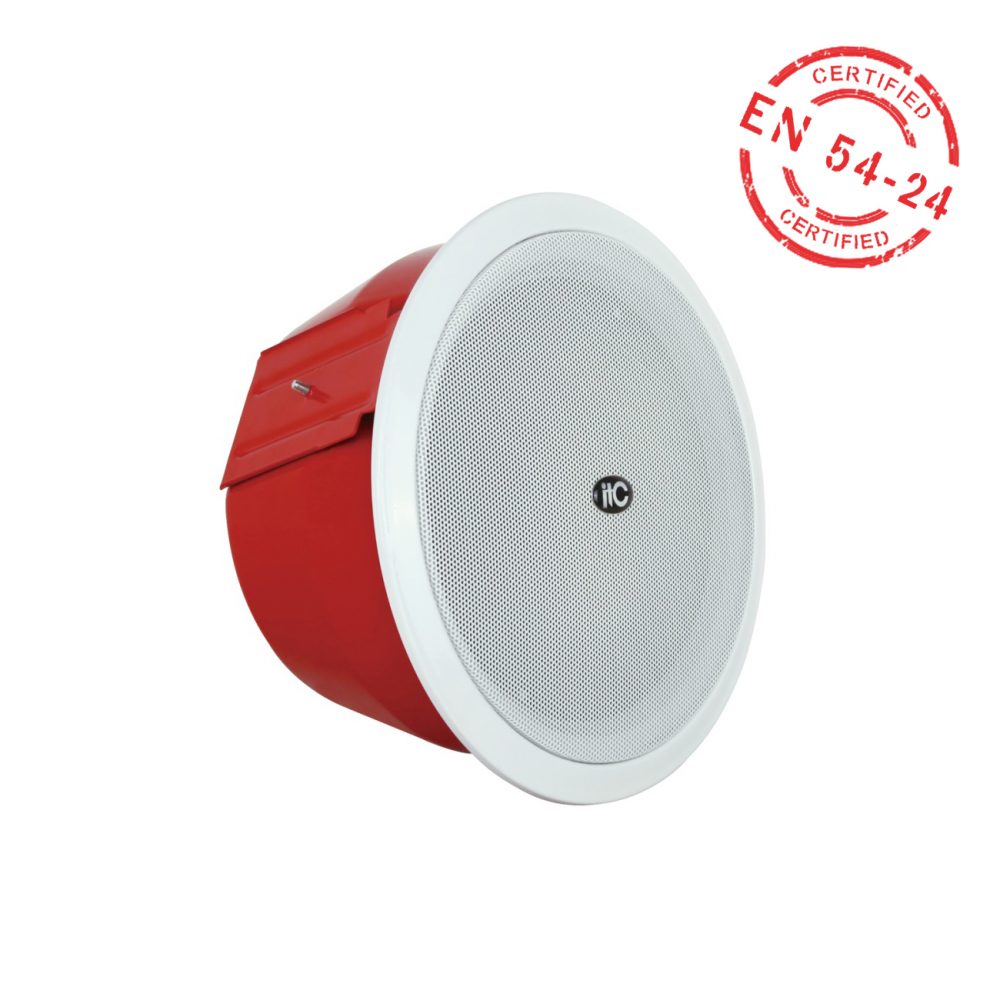

VA-575/VA-565- Fireproof Ceiling Speaker.

5”/6”/8” fireproof version ceiling speaker
Economic range design for voice evacuation system
Ceramic connector, thermal use and fire-resistant cable
5 power taps at 100V output
All metal material design with fire dome
Fast installation by spring clip
Excellent response for background music and voice message
EN54-24 certification is under taken

Model VA-565 VA-575 VA-585
Power Taps @100V 6W,  3W, 1.5W, 0.75W, 0.38W 6W, 3W, 1.5W, 0.75W, 0.38W 15W, 7.5W, 3.75W, 1.87W, 0.93W
Power Taps @70V 3W, 1.5W, 0.75W, 0.38W, 0.19W 3W, 1.5W, 0.75W, 0.38W, 0.19W 7.5W, 3.75W, 1.87W, 0.93W, 0.46W
Impedance Com/1240Ω/1840Ω/3340Ω/6790Ω/13300Ω Com/1390Ω/1980Ω/3410Ω/7080Ω/13230Ω Com/670Ω/1300Ω/2600Ω/5300Ω/8950Ω
SPL 92dB 92dB 93dB
Frequency Response (-10dB) 130-18KHz 120-18KHz 80-20KHz
Finish Baffle: Steel, White Baffle: Steel, White Baffle: Steel, White
Grille: Steel, White   Cover: Steel, Red Grille: Steel, White   Cover: Steel, Red Grille: Steel, White   Cover: Steel, Red
Speaker Driver 5″ x 1 6″ x 1 8″ x 1     1.5″ x 1
Cutout Size 157mm 207mm 240mm
Dimension 180 x 147mm 230 x 148mm 270 x 152mm
Weight 1.2Kg 1.6Kg
