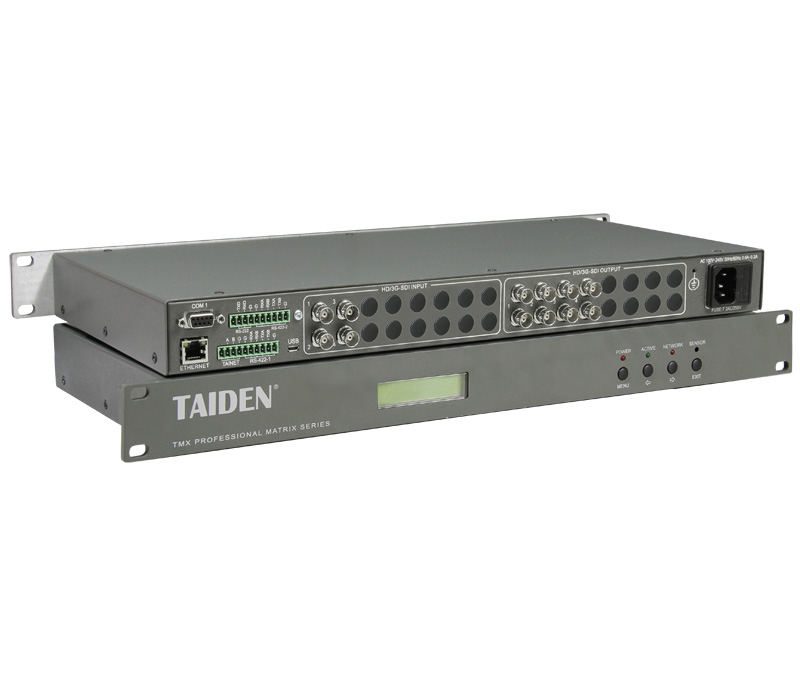

TMX-0404SDI2 4×4 High Definition Digital Video Tracking Matrix Switcher

  • Video interface: BNC×2 female
  • Data rates: 143 Mbps~2.97 Gbps
  • Compatible with SMPTE 259 M, SMPTE 292 M, SMPTE 344 M, SMPTE 424 M and DVB-ASI (270 Mbps)
  • Input equalization and clock recovery, output pre-emphasis
  • If input has no signal, the input and output will automatically shut down to reduce current consumption
  • RS-232 control, supporting RS-232 protocols, for connection with central control system
  • Two RS-422 control ports with built-in professional camera control protocols, a variety of professional cameras like TAIDEN HCS-3316HDB, SONY, PELCO and Panasonic can be controlled
  • One TAINET interface for connection with TAIDEN conference system
  • One RJ45 interface for TCP/IP connection
  • LCD to display real-time operation
