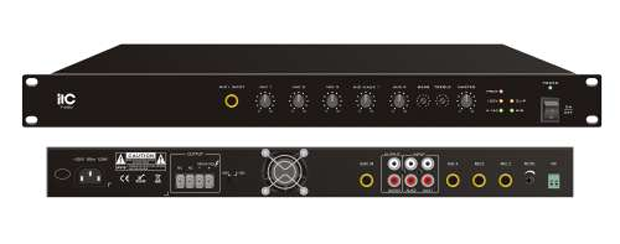

T-60D Mixer Digital Amplifier(Phone Jack Mic Input).

* Digital Mixer Amplifier.

* It is used for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.

* Standard cabinet design (1U), exquisite SMT process design.

* 1 EMC input, 2 AUX inputs, 4 MIC inputs.

* Channel priority function: EMC>MIC1>MIC2, MIC3, AUX1, AUX2.

* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.

* The device is equipped with level indication, overload and protection indicators.

* The device has good self-protection such as short circuit, overload and overheating.

* Two output modes: 100V, 4-16Ω.

* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.

* Wide voltage supply: 180V-240V can work normally.

Model T-60D T-120D T-240D T-350D T-500D
Output Terminals 4-16Ω, 100V
Output Power 60W 120W 240W 350W 500W
Input Sensitivity & Impedance MIC1, 2, 3, 4 input:5mV/600Ω unbalanced 6.3 connector; AUX1, 2 input:350mV/10KΩ unbalanced RCA connector

EMC input:775mV/10KΩ unbalanced 6.3 connector

Output Sensitivity & Source Impedance MIX OUT:1000mV/470Ω unbalanced RCA connector
Tone Bass:±10dB at 100Hz;Treble:±10dB at 10KHz
Frequency Response 50Hz~16KHz(+1dB,-3dB)
SNR MIC1, 2, 3:66dB; AUX1, 2:85dB
THD Less than 0.05%(@1KHz, 1/3 rated power)
Mute MIC 1 prior to MIC2-4,AUX1-2 audio input,EMCprior to all audio input
Channel Crosstalk Attenuation ≥50dB
Cooling Forced fan cooling after side entry, fan start after start, stepless speed change processing
Protection Overheating protection, overcurrent protection, short circuit protection
Power Supply ~220-240V /50Hz
Power Consumption 120W 180W 300W 500W 650W
Dimension 484×295×44mm
Weight 4.1Kg 4.3Kg 4.5Kg
