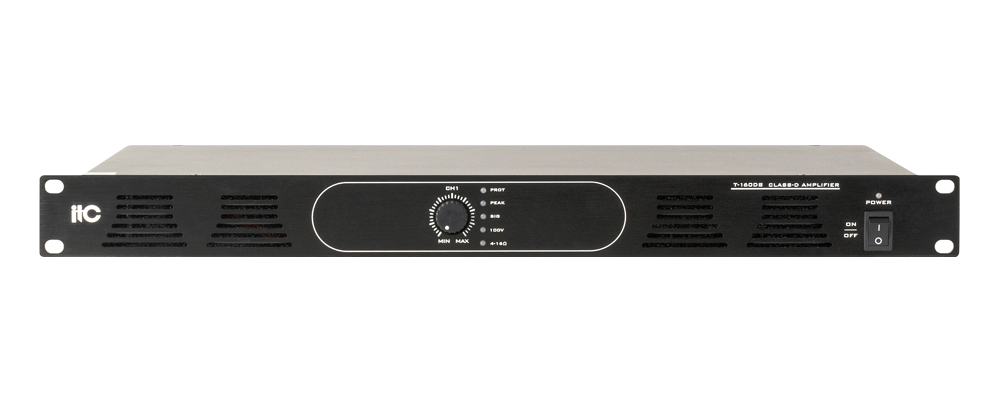

T-160DS Digital Mixer Amplifier.

Provide regional power amplification for broadcasting systems, suitable for broadcasting systems such as clubs, stadiums, shopping malls, etc. that require multi-channel high-power pure back-end amplifiers.

* Using high-efficiency Class D amplifier circuit and built-in high-efficiency switching power supply, making the overall efficiency as high as 85%.

* The product adopts reasonable heat dissipation layout inside, so that the product can keep the working temperature below 55 degrees even in extremely harsh working environment, which greatly prolongs the service life of the equipment.

* Using 1U standard 19-inch industrial cabinet design.

* 1-channel digital power amplifier with 100V or 4-16Ω output terminal.

* Support fault output function, can remotely monitor the working status of power amplifier equipment.

* The product has short circuit, overload and overheat protection.

* Support 1 channel independent power supply function.

* 85% high efficiency amplifier with low power loss and low heat generation.

* With 1 channel European terminal balanced input, 1 channel European terminal output.

Model T-160DS T-1120DS T-1240DS T-1350DS T-1500DS T-1650DS
Rated Power Output 60W 120W 240W 350W 500W 650W
Rated Output 100V/4-16Ω
Input Sensitivity ±385mV/20KΩ,Balance input
(impedance)
Overload Source

Electromotive Force

>11dB
Frequency Response 80Hz~16KHz (+1, -3dB)
Signal-to-noise Ratio ≥85dB
THD ≤0.1% at 1KHz, 1/3 Rated power
Control Remote power control and fault indication
Indicator Light Signal, peak, protection, power
Protection Overheat, overload, short circuit
Cooling Fan forced cooling
Power Supply ~220V/50Hz
Power Consumption 90W 160W 300W 600W 750W 900W
Dimension 484×315×44mm
Weight 3.3kg 3.6kg 3.7kg 3.8kg 3.9kg 4.1kg
