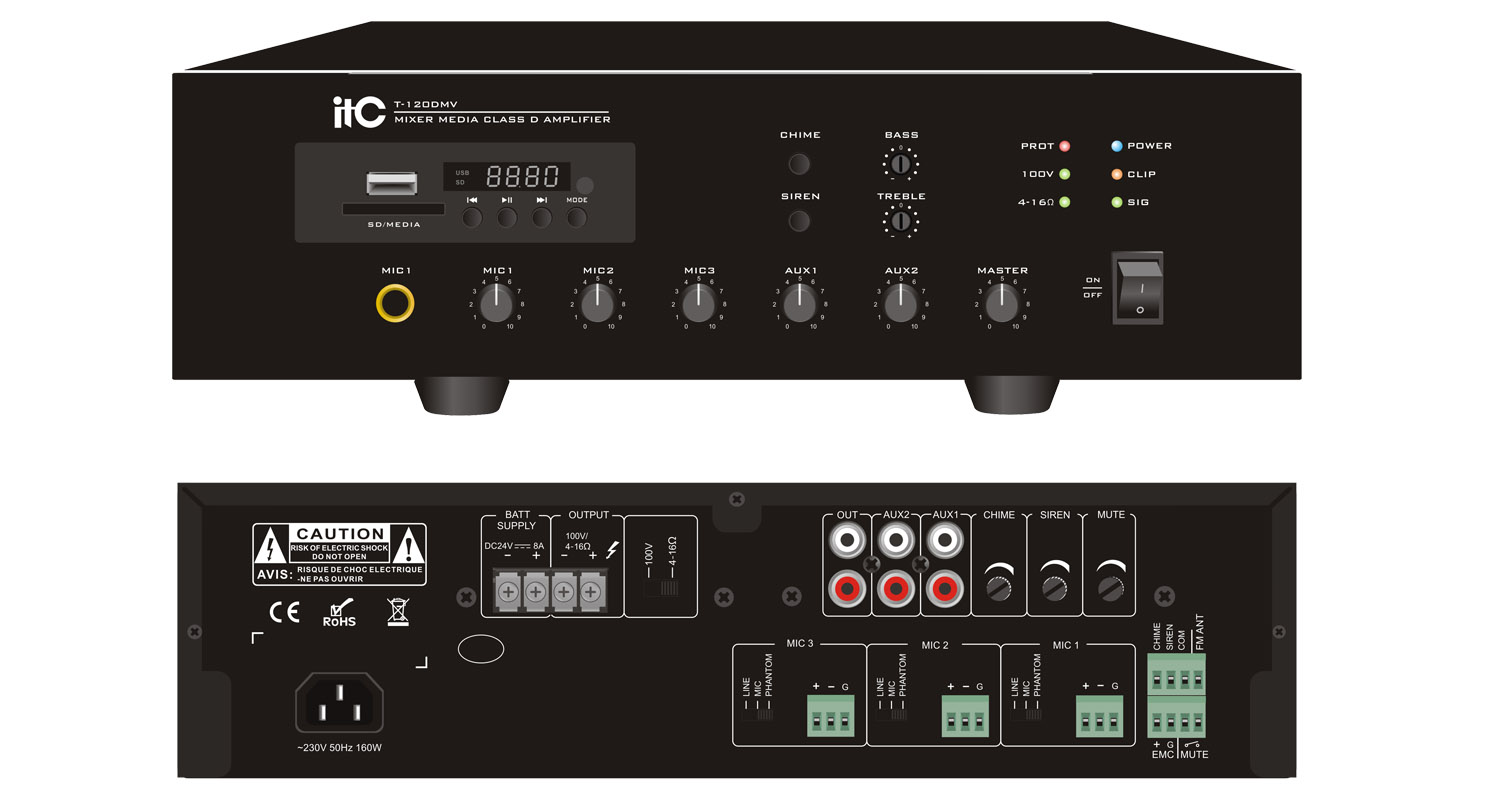

T-120DMV / T-240DMV / T-350DMV / T-500DMV Desktop Digital mixer amplifier with MP3/Tuner/Bluetooth(Phoenix Mic Input, wtih 24VDC)

Specifications:

Model T-120DMV T-240DMV T-350DMV T-500DMV
Output 4-16Ω, 100V
Rated Power 120W 240W 350W 500W
Input sensitivity

& impedance

MIC1, 2, 3, 4 input: 5mV/600Ω balanced European connection terminal;
AUX1, 2 input: 350mV/10KΩ unbalanced RCA connection terminal;
EMC input: 775mV/10KΩ unbalanced European connection terminal
Output Sensitivity &

Source Impedance

MIX OUT: 1000mV/470Ω unbalanced RCA connection terminal
Pitch Bass:±10dB at 100Hz; Tweeter:±10dB at 10KHz
Frequency Response 50Hz~16KHz(+1dB,-3dB)
SNR MIC1, 2, 3:66dB; AUX1, 2:80dB
Distortion Less than 0.5% (at 1KHz, 1/3 rated power)
Mute function MIC 1 has higher priority than MIC2-4, AUX1-2 audio input;
EMC has the highest priority
Channel Crosstalk ≥50dB
Attenuation
Heat Dissipation Forced fan cooling after side entry, start fan, infinitely variable
speed processing
Protection Overheat protection, overcurrent protection, short circuit protection
Power Supply AC ~220-240V /50Hz; DC 24V
Power Consumption 160W 300W 500W 650W
Dimension 324×270×88mm
Weight 4.5Kg 5.1Kg 5.4Kg 5.6Kg

Description:

The desktop mini-type class D mixer amplifier has beautiful appearance and light weight; it is used for some small and medium-sized background music playing places such as small and medium-sized supermarkets, shopping malls and leisure cafes, etc.

Features:

* Desktop design, exquisite SMT process design.

*Support mp3/TUNER/Bluetooth, with remote control which coverage distance is up to 8 meters.

* With USB and SD card interface, integrated MP3 player module, with automatic priority playing audio function, digital screen can display the currently playing track of USB.

* Integrated Bluetooth module to support music playback via Bluetooth mobile phone.

* Integrated TUNER module with FM radio antenna port.

* 1 EMC input, 2 AUX inputs, 4 MIC inputs.

* Channel priority : EMC>SIREN>CHIME>MIC1>MIC2, MIC3, AUX1, AUX2.

* Each input has independent volume adjustment, and the total volume has high pitch, bass adjustment and volume control.

* MIC1-4 balanced input with built-in 48V phantom power.

* Built-in chime and alarm source, remote control trigger.

* Built-in mute background music control.

* With short circuit, overload and overheating protection function.

* Output: 100V, 4-16Ω.

* Adopt high-efficiency energy-saving switching power supply and Class D technology.

* Wide voltage supply: 220V-240V can work normally; support standby DC 24V without delay switching.
