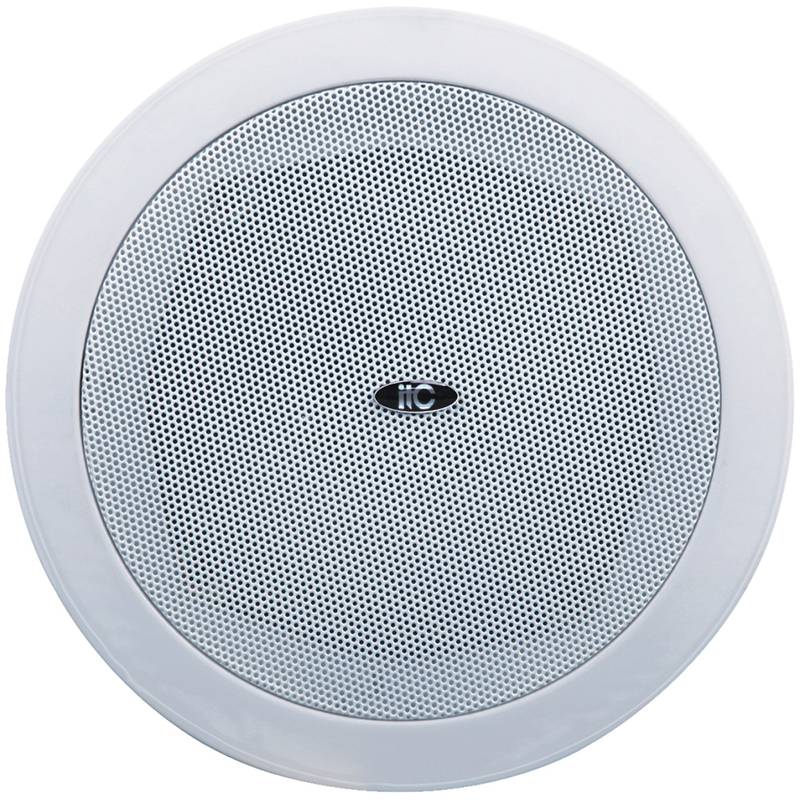

T-104U Ceiling Speaker.

  • The T-104U is a ceiling speaker built-in 70v/100v transformer. The
    70v/100v transformer technique reduces line losses on longer distance
    and allows easy parallel connection of multiple loudspeakers.
  • The built-in 4” speaker driver is designed of wide frequency response
    100-16KHz, the multiple power taps 1W, 2W & 3W are helpful for different
    applications varies from room size and ambient noise surroundings.
  • The metal grille and ABS baffle are painted in attractive white color. Its spring clip clamp makes the easy and secure
  • It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music
    and paging is needed.
Model T-104U
Power Taps @100V 1W, 2W, 3W
Power Taps @70V 0.5W, 1W, 1.5W
Impedance Black: Com Red:10KΩ Green:5KΩ White:3.3KΩ
SPL(1W/1M) 88 dB
Max. SPL (Rated W/1M) 93 dB
Frequency Response (-10dB) 100-16KHz
Mounting Spring-clip
Finish Baffle: ABS, White Grille: Steel, White
Speaker Driver 4″ x 1
Cutout Size 108mm
Dimensions 134 x 84mm
Weight0. 0.5Kg
